Network cable / Network device:CC-Link/LT

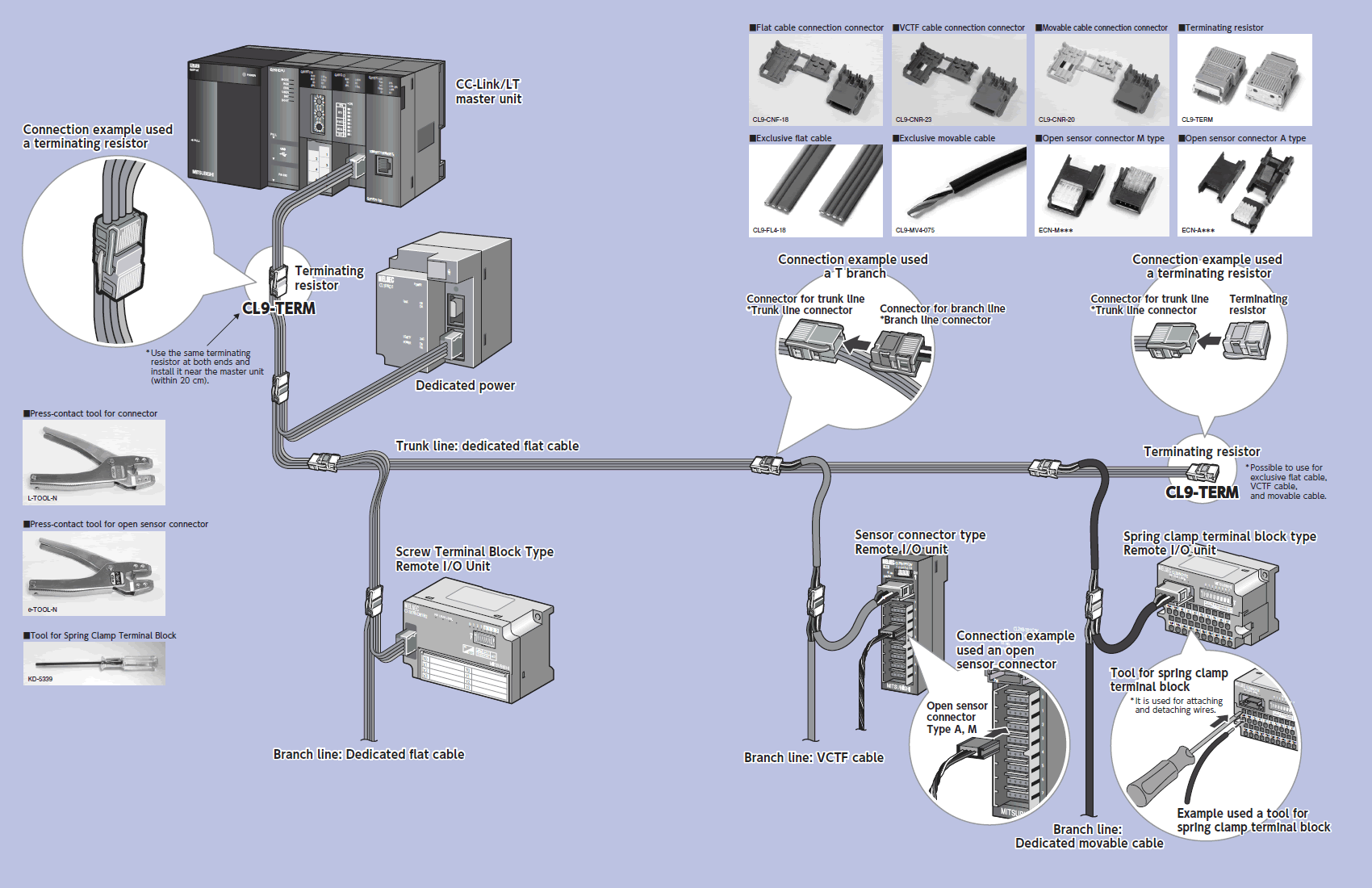

Configuration example

 View larger image


▲ Page TOP

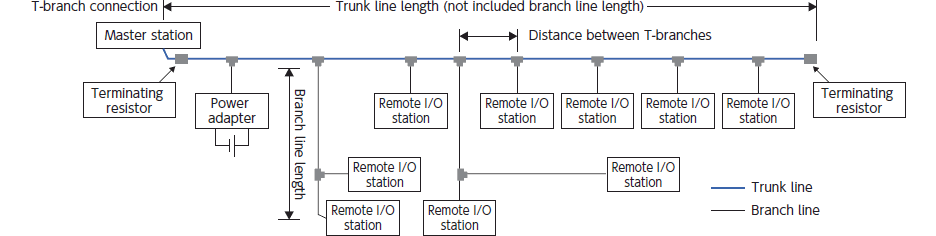

Communication (network wiring) specification


Item Specification Remarks
Transmission speed 2.5 Mbps 625 kbps 156 kbps -
Station to station distance Unlimited -
Maximum number of connected branches (per branch) 8 units -
Trunk line length 35 m 100 m 500 m Cable length between terminating resistors
(Not included branch line length)
Distance between T-branches Unlimited -
Maximum branch line length*1 4 m 16 m 60 m Cable length per branch
(Including cable from connector to equipment)
Total branch line length*1 15 m 50 m 200 m The Total Branch line length
*1. The length branched from the branch line is also included in the maximum branch line length and total branch line length.
It is disable to mix different kind of cables in the trunk line and the same branch line.
