Network cable / Network device：CC-Link IE field network
For OverseasSpecification
Cable specification
| Item | SC-E5EW-S□M*1 | SC-E5EW-S□M-MV*2 | SC-E5EW-S□M-L*1 | |
|---|---|---|---|---|
| Usage environment/use | Indoor | Indoor movable part | Indoor/outdoor | |
| Cable types | (With double shield ・ STP) straight cable | |||
| Compliant standard | IEEE802.3 1000BASE-T | |||
| ANSI/TIA/EIA-568-B (Category 5e) | ||||
| ISO/IEC 11801 | ||||
| Safety standard (electric wire section)*3 |
UL AWM STYLE 20276 | UL AWM STYLE 20276 cUL AWM I AB (CSA C22.2 No.210.2) |
─ | |
| Number of core wire | 8-core (4 pairs of twist) | |||
| Conductor | Material | Annealed copper single wire for electrical use |
Annealed copper stranded wire for electrical use |
Annealed copper single wire for electrical use |
| Size | 24 AWG | 26 AWG | 24 AWG | |
| Double shield | Aluminum/polyester tape | |||
| Tinned annealed copper wire braid | ||||
| Cable jacket | Material | Flame retardant PVC | LAP sheath | |
| Color | Orange | Black | ||
| Finished outside diameter | 6.8 mm | 6.5 mm | 10 mm | |
| Allowable bending radius | 26 mm or more*4 | 52 mm or more*5 | 60 mm or more*4 | |
| Allowable tension | 110 N | 80 N | 110 N | |
| Mechanical performance*6 |
U-shaped transfer bending |
─ | Stroke 500 mm, bending radius 50 mm (1 million times no disconnection) |
─ |
| Repeated bending |
─ | Right and left 90°, bending radius 50 mm (1 million times no disconnection) |
─ | |
| Twisting | ─ | ± 180°, helical length 300 mm (1 million times no disconnection) |
─ | |
| Maximum cable length*7 | 100 m | 45 m | 100 m | |
| Service temperature range | -10 to 60℃ | -10 to 60℃ (fixed part)/ 0 to 60℃ (movable part) |
-10 to 60℃ | |
| Approximate weight | 60 g/m | 55 g/m | 90 g/m | |
| Connector | Type | Shielded RJ45 plug | ||
| Wiring method | Straight connection | |||
| Boots | Material | PVC, UL 94, V-O material | ||
| Color | Light gray | |||
*1. □： Cable length (1 m unit, up to 100 m)
*2. □： Cable length (1 m unit, up to 45 m)
*3. UL wiring harness ・ program is applied.
*4. It is the bending radius when the cable is fixed (no load).
*5. It is the bending radius under no load.
*6. It is a test result and not a guaranteed value.(Performance varies depending on customer's usage environment.)
*7. It is when wiring consists of only one single-wire or stranded conductor cable (at 20℃).For other wiring methods, please refer to "CC-Link IE Field Network Installation Manual"issued by the CC-Link Partner Association [CC-1006-14].
*2. □： Cable length (1 m unit, up to 45 m)
*3. UL wiring harness ・ program is applied.
*4. It is the bending radius when the cable is fixed (no load).
*5. It is the bending radius under no load.
*6. It is a test result and not a guaranteed value.(Performance varies depending on customer's usage environment.)
*7. It is when wiring consists of only one single-wire or stranded conductor cable (at 20℃).For other wiring methods, please refer to "CC-Link IE Field Network Installation Manual"issued by the CC-Link Partner Association [CC-1006-14].

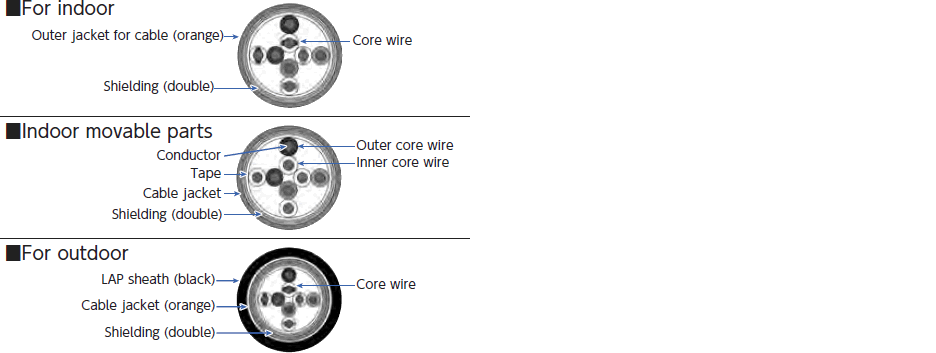

Structure
Ethernet cable For CC-Link IE field network
