⑤Pull-out Direction Category
| A1 |
Motor load side pull-out |
| A2 |
Motor opposite-load side pull-out |
| A3 |
Motor shaft left side pull-out |
| A4 |
Motor shaft right side pull-out |
| None |
Straight Type |

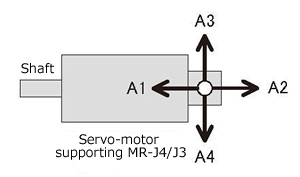

A1:Load side cable pull-out
A2:Opposite-load side cable pull-out
A3:Shaft left side cable pull-out
A4:Shaft right side cable pull-out
- ※View from cable insertion direction
-
Depending on the servo-motor and installation environment, the connector and cable may cause interference and render mounting in some pull-out directions impossible. Select upon confirmation with the outline drawings in Mitsubishi Electric Corporation's Servo-motor Technical Documents and in the specifications for each cable.
