Network cable / Network device：CC-Link IE field network
For OverseasLineUP

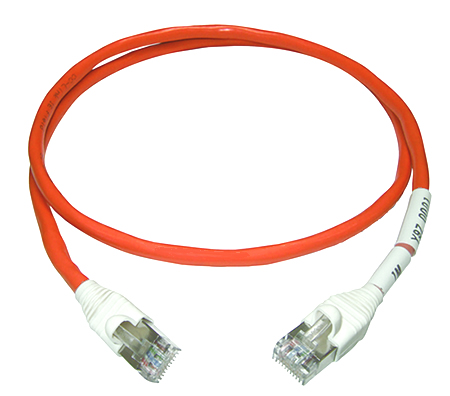

Model name: SC-E5EW-S□M (indoor use)
Model name: SC-E5EW-S□M-MV(for indoor movable parts)
Model name: SC-E5EW-S□M-L(indoor/outdoor use)
It is a double shielded cable with high resistance to external noise conforming to the 1000BASE-T standard.
Product Specification
Features
■This cable has passed the CC-Link partner Association recommended product test.Please use with confidence.■It is an Ethernet cable conforming to the IEEE802.3 1000BASE-T standard.
■Because of the double shield structure with aluminum tape and braid, the shielding property is excellent.
■Because of its excellent shielding property, it can be used for EMI measures when using Ethernet and for measures against external noise.
■The movable part cable (SC-E5EW-MV) can be used in movable parts that perform repetitive tasks, such as cable protection chains and hoist cranes.
■We manufacture it from 1 m to 100 m in 1 m increments (build to order).We provide cables of the length suitable for your facilities.We also offer a products with standard length (stock production) at lower prices.
* When using the movable part cable, the insertion loss is large and the possible transmission distance becomes shorter since the conductor size is thin. (Maximum 45 m)

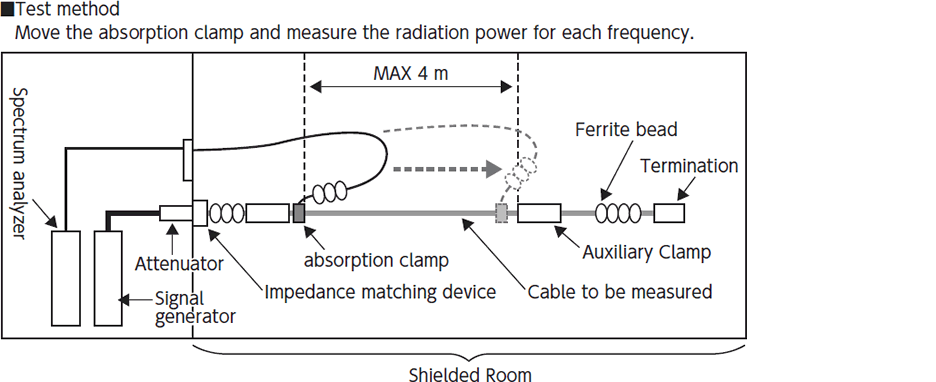

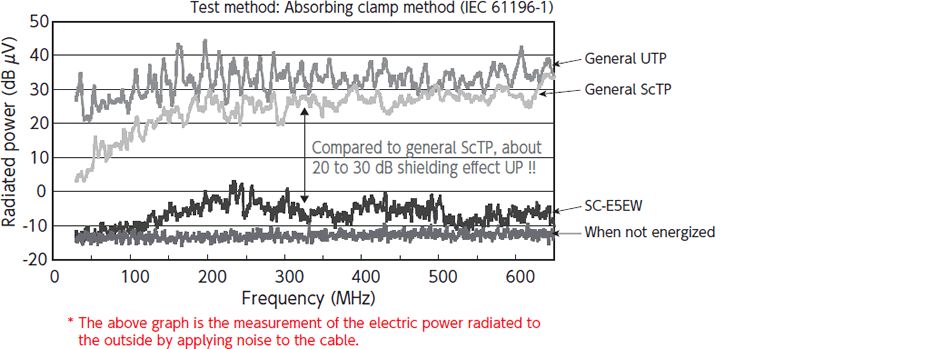

Cable shielding property
Option
〈Use〉・It can be used for extension of cable (relay connection) and connection with patch cord.
・It can be used for detachment inside and outside the control panel (panel mounted), with patch panel.
| Item name | Model name | Adaptable connector | Category | Service temperature | Compliant standard |
|---|---|---|---|---|---|
| Relay adapter (2 pieces) | SPAD-RJ45SE5E | Shielded RJ45 plug | Category 5e | -10 to 60℃ | IEEE802.3 1000BASE-T |
| ANSI/TIA/EIA-568-B (Category 5e) | |||||
| ISO/IEC 11801 |
