Network cable / Network device：CC-Link/LT
For OverseasLineUP

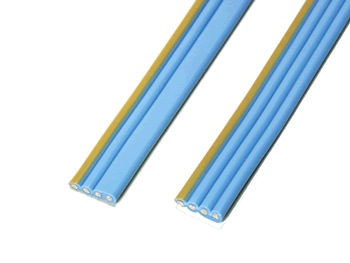

Dedicated flat cable
Model name: CL9-FL4-18
Product Specification
Features
■Cost reductionBy using a dedicated flat cable, it is possible to reduce wiring man-hour and wiring cost.
■Prevention of miswiring
Because this cable is asymmetrical on the front and back,if you connect it in reverse, the connector will not close.
Features
■Insulator with excellent bending property (ETFE) and wire structure enable bending performance of 4 million times or more.*1■A sheath with excellent oil resistance enables to use in environments where cutting oil and lubricant are easily adhered.
* 1. This is the measured value under specified conditions.
Crimp tool for connector

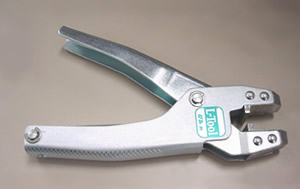

Model name: L-TOOL-N
Features

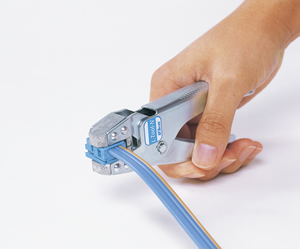

■It is used when crimping a connector onto a cable.Since the press-contacting surface is flat and operates in parallel, once operation enables press-contact reliably.■Almost no pressure crack on the connector.
■The stopper prevents excessive pressure welding and breakage.
Tool for spring clamp terminal block
Model name: KD-5339
Features

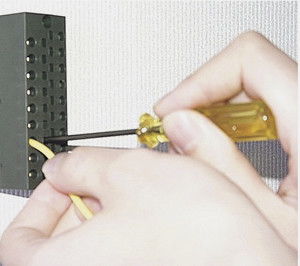

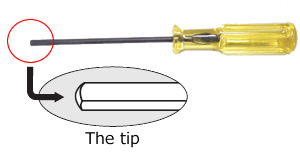

■Use for attaching and detaching the wire to the spring clamp terminal block.■Exclusively developed tool maintains the reliability. Since the tip is processed in a round shape, no damage to the spring clamp terminal part or the terminal block resin part.
Connector
Model name: CL9-CNF-18 (Connector for flat cable connection)
Model name: CL9-CＮR-23 (Connector for VCTF cable connection)
Model name: CL9-CNR-20 (Connector for movable cable connection)
Model name: CL9-CＮR-23 (Connector for VCTF cable connection)
Model name: CL9-CNR-20 (Connector for movable cable connection)
CL9-CNF-18
CL9-CNR-23
CL9-CNR-20
Features
■Easy task・Connector installation can be easily pressed with a dedicated crimp tool (model: L-TOOL-N). The installation can also be done with pliers on the market.
■Prevention of miswiring
・The connector has a window for checking miswiring.With the connector for flat cable connection, it is incorrect wiring if orange cable from the confirmation window is shown.
・With the connector for VCTF/movable cable connection, if red, white and black cable are shown, it is incorrect wiring.
・Cover of the VCTF/movable cable connector has a color mark for preventing miswiring.
■Multifunctional connector
・Cutting the tip resin part of cover with a nipper and so on,it can be used as a connector for branch connection.
・The fitting part has both male connector and female connector,it is possible to join with same connector.Also, each connector of dedicated flat/VCTF/movable cable can also be jointed to each other.

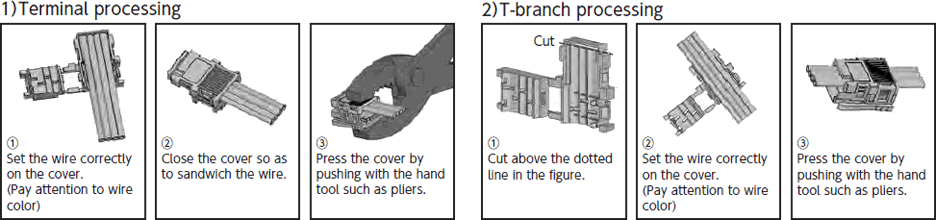

Work procedure of pressure welding connector(Connector for flat cable:CL9-CNF-18)

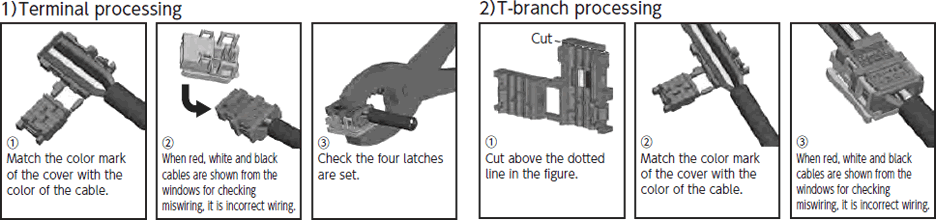

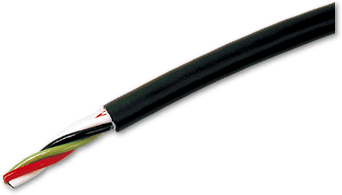

Work procedure of pressure welding connector(Exclusive movable cable:CL9-MV4-075)
Features
■Easy MaintenanceA small size.One touch mounting is possible. Windows for voltage check make it easy to check the voltage of the trunk line.
■CL9-TERM
It can be used when configuring the system with a dedicated flat/VCTF/movable cable alone, and when configuring the system by mixing a dedicated flat/VCTF/movable cable.
