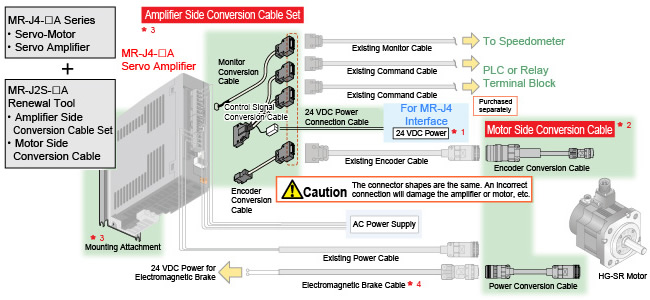

Type A (for general purpose interface) 100V/200V / Type CP (for built-in positioning)

■Primary Replacement (replacing the servo amplifier only)

■Secondary Replacement (replacing the servo-motor following replacement of the servo amplifier)

■Package Replacement(replacing both the servo amplifier and the servo-motor together)

* 1. Separate 24 VDC power (current capacity 80mA or more) is required for the interface
　　when making the replacement.
　　Please refer to the "Product List (recommended power specification)" for details about
　　the recommended specification.
　　(Required only when a 24 VDC power supply for the internal interface is used with the
　　MR-J2S-□A servo amplifier.Not required when 24 VDC power for interface is supplied
　　from an external source.）

* 2. Confirm the selection results from "Selection of Replacement Combination" for details.

* 3. When replacing the HC-KFS, MFS Motor with the HG-KR, MR Motor, the
　　 electromagnetic brake cable is built into the power cable.

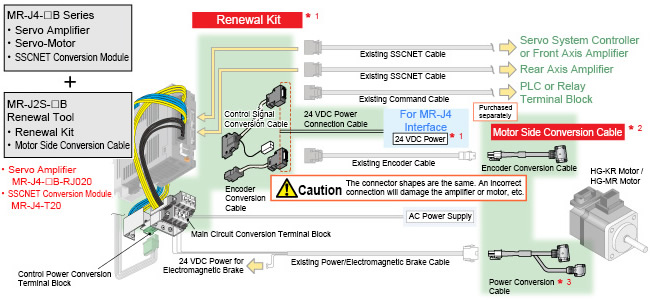

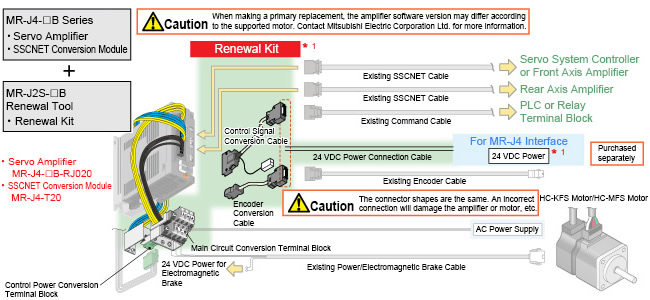

　Type B (for SSCNET interface) 100V/200V

■Primary Replacement (replacing the servo amplifier only)

■Secondary Replacement (replacing the servo-motor following replacement of the servo amplifier)

■Package Replacement(replacing both the servo amplifier and the servo-motor together)

* 1. Separate 24 VDC power (current capacity 80mA or more) is required for the interface
　　when making the replacement.
　　Please refer to the "Product List (recommended power specification)" for details about
　　the recommended specification.
　　(Required only when a 24 VDC power supply for the internal interface is used with the
　　MR-J2S-□A servo amplifier.Not required when 24 VDC power for interface is supplied
　　from an external source.）

* 2. Confirm the selection results from "Selection of Replacement Combination" for details.

* 3. When replacing the HC-KFS, MFS Motor with the HG-KR, MR Motor, the
　　electromagnetic brake cable is built into the power cable.

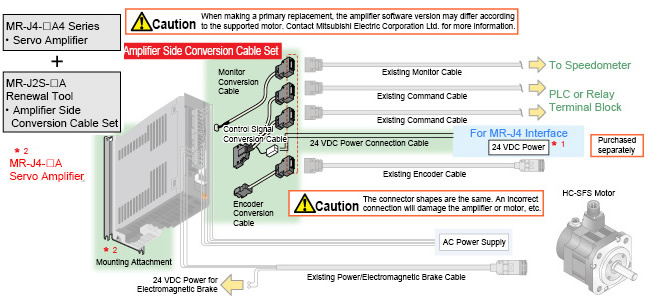

　Type A (for general purpose interface) 400V

■Primary Replacement (replacing the servo amplifier only)

■Secondary Replacement (replacing the servo-motor following replacement of the servo amplifier)

■Package Replacement(replacing both the servo amplifier and the servo-motor together)

* 1. Separate 24 VDC power (current capacity 80mA or more) is required for the interface
　　when making the replacement.
　　Please refer to the "Product List (recommended power specification)" for details about
　　the recommended specification.
　　(Required only when a 24 VDC power supply for the internal interface is used with the
　　MR-J2S-□A servo amplifier.Not required when 24 VDC power for interface is supplied
　　from an external source.）

* 2. Confirm the selection results from "Selection of Replacement Combination" for details.

* 3. When replacing the J2S 400V amplifier, it is necessary to arrange for a mounting
　　attachment and a separate conversion cable set on the amplifier side.
　　Refer to "Selection of Replacement Combination" for the selection method.

* 4. For secondary replacement or package replacement of a motor with brake,a new
　　electromagnetic brake cable must be connected.
　　Use a motor electromagnetic brake cable made by Mitsubishi(SC-BKC1CBL□M-L or
　　SC-BKC1CBL□M-H).

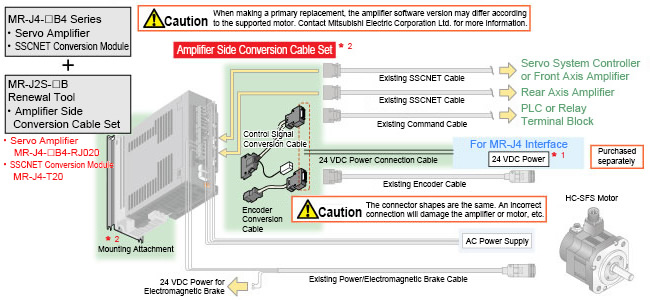

　Type B (for SSCNET interface) 400V

■Primary Replacement (replacing the servo amplifier only)

■Secondary Replacement (replacing the servo-motor following replacement of the servo amplifier)

■Package Replacement(replacing both the servo amplifier and the servo-motor together)

* 1. Separate 24 VDC power (current capacity 80mA or more) is required for the interface
　　when making the replacement.
　　Please refer to the "Product List (recommended power specification)" for details about
　　the recommended specification.
　　(Required only when a 24 VDC power supply for the internal interface is used with the
　　MR-J2S-□A servo amplifier.Not required when 24 VDC power for interface is supplied
　　from an external source.）

* 2. Confirm the selection results from "Selection of Replacement Combination" for details.

* 3. When replacing the J2S 400V amplifier, it is necessary to arrange for a mounting
　　attachment and a separate conversion cable set on the amplifier side.
　　Refer to "Selection of Replacement Combination" for the selection method.

* 4. For secondary replacement or package replacement of a motor with brake,a new
　　electromagnetic brake cable must be connected.
　　Use a motor electromagnetic brake cable made by Mitsubishi(SC-BKC1CBL□M-L or
　　SC-BKC1CBL□M-H).
