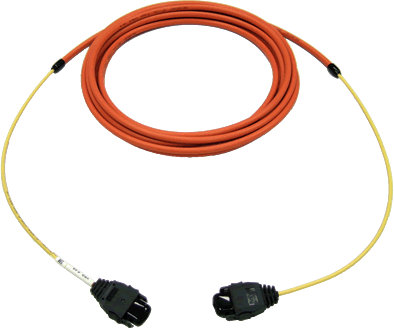

Optical fiber cable for MELSECNET
Optical fiber cable for Mitsubishi general purpose sequencers, MELSECNET.
A wide range of lineup is available to select the appropriate cable according to the usage environment.
Product Specification
Features
■It shall enable to built highly reliable networkBased on MELSEC's outstanding design philosophy, we offer optical fibers that can be used safely with carefully selected materials and advanced processing technology.
■Extensive specifications of cable
A wide range of lineup is available to select the appropriate cable according to the usage environment.
■Large capacity and super high speed transmission are achieved
Broadband, large capacity and super high speed transmission is possible.
Also the construction of highly reliable and flexible system with high noise tolerance is achieved.
■Highly reliable terminal processing and fusion work on site
We offer connector installation work and fusion work on site with security and satisfaction.
Cable types by laying environment
| Application classification | Model names and types of cable | |||||||
|---|---|---|---|---|---|---|---|---|
| AS-A SG-A SG-AW |
AS-B | SG-BV | AS-D | QL-DL SG-DL SG-EL |
PICOFLEC | PICOCABLE | ||
| Indoor environme nt |
Indoor,piping | × | △1 | ○ | ○ | ○ | ○ | ○ |
| Ruck | △2 | ○1 | ○ | ○ | ○ | ○ | ○ | |
| Duct | △2 | ○1 | ○ | ○ | ○ | ○ | ○ | |
| Free access | △2 | ○1 | ○ | ○ | ○ | ○ | ○ | |
| In a panel | ○ | △5 | △5 | △5 | △5 | ○ | △5 | |
| Outdoor environment |
Underground pipe passage | Not applicable | △3 | ○ | × | ○ | ||
| Ruck | ○ | ○ | × | ○ | ||||
| Trough | △3 | ○ | × | ○ | ||||
| Aerial | △4 | △4 | × | △4 | ||||
| Direct buried | × | × | × | ○ | ||||
| Submerged environment | × | ○2 | × | ○3 | ||||
・In any cases, please lay cables so as not to be under other electric wires etc.
・Even indoors, please use outdoor cables if there are risks of being flooded or temporary submerged.
○：Applicable
△：Conditionally applicable
×：Not applicable
○1：Applicable when the pulling wiring is not adopted.
○2：Temporary submersion is applicable.(Permanent submersion is not applicable)
○3：Permanent submersion is applicable. (excepting flexible parts)
△1：Applicable when the feed wiring using exclusive route of light is adopted.(Not applicable to the pulling wiring)
△2：Applicable when outer force is not exerted by protecting the bent parts and contact parts.
△3：Applicable not to be submerged.
△4：Applicable when laying an indication line separately and fix a cable along the line.
△5：Applicable when there is sufficient bending radius or storage space.
・Even indoors, please use outdoor cables if there are risks of being flooded or temporary submerged.
○：Applicable
△：Conditionally applicable
×：Not applicable
○1：Applicable when the pulling wiring is not adopted.
○2：Temporary submersion is applicable.(Permanent submersion is not applicable)
○3：Permanent submersion is applicable. (excepting flexible parts)
△1：Applicable when the feed wiring using exclusive route of light is adopted.(Not applicable to the pulling wiring)
△2：Applicable when outer force is not exerted by protecting the bent parts and contact parts.
△3：Applicable not to be submerged.
△4：Applicable when laying an indication line separately and fix a cable along the line.
△5：Applicable when there is sufficient bending radius or storage space.
Option
PA7003
| Applicable connectors | DL-72ME CA7003 DL6-CP |
|---|
