Network cable / Network device：MELSECNET
For OverseasSelection
Optical fiber cable selection table
Please select the cable type from the table below according to your MELSECNET usage environment, distance between stations.MELSECNET/H、MELSECNET/10
| Network names | SI cable | GI cable | Usage environment | |||
|---|---|---|---|---|---|---|
| Connection models | Station to station distance(m) | Connection models | Station to station distance(m) | |||
| 1 to 400 | 1 to 1000 | 1 to 2000 | ||||
| MELSECNET/H 25Mbps |
〈Sequencer model name〉 RJ71LP21-25 QJ71LP21-25 QJ71LP21S-25 QJ72LP25-25 〈GOT model name〉 GT15-J71LP23-25 〈Interface board model name for personal computer〉 Q80BD-J71LP21-25 Q81BD-J71LP21-25 Q80BD-J71LP21S-25 |
AS-A | QH-A | - | - | In a panel (A) |
| AS-B | QH-B | Indoor (B) | ||||
| AS-D | QH-D/QL-DL | Outdoor(reinforcement)(D) | ||||
| MELSECNET/H 10Mbps MELSECNET/10 |
〈Sequencer model name〉 RJ71LP21-25 QJ72LP25 〈GOT model name〉 GT15-J71LP23-25 〈Interface board model name for personal computer〉 Q80BD-J71LP21-25 Q81BD-J71LP21-25 Q80BD-J71LP21S-25 |
AS-A/QH-A | 〈Sequencer model name〉 |
SG-A/SG-AW | In a panel (A) | |
| AS-B/QH-B | SG-BV | Indoor (B) | ||||
| AS-D/QH-D/QL-DL | SG-DL/SG-EL | Outdoor(reinforcement)(D) | ||||
* Please use the dedicated cable above when using with high speed communication.
CC-Link (repeater unit)
| Network names | Sequencer model name | Usage environment | Station to station distance (m) | |||
|---|---|---|---|---|---|---|
| SI cable | GI cable | SI cable | GI cable | |||
| 1 to 1000 | 1 to 2000 | |||||
| H-PCF | Broadband | GI | ||||
| CC-Link (repeater unit) |
AJ65SBT-RPS | AJ65SBT-RPG | In a panel (A) | AS-A | QH-A | SG-A, SG-AW |
| Indoor (B) | AS-B | QH-B | SG-BV | |||
| Outdoor(reinforcement)(D) | AS-D | QH-D/QL-DL | SG-DL | |||

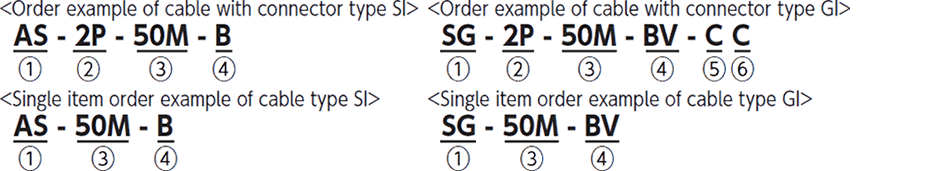

Specifying method when ordering optical fiber cables
①Optical fiber cable series name:Please select <series name> of optical fiber cable according to MELSECNET series.
Optical fiber cable series name:AS,QH,QL,SG,M
②Connector installation:
2P: install on both ends of connector
1P: install on one end of connector (only SG)*1
None: Cable only (site works etc.)
③Length of cable:Please specify the required length(in 1 m increments)
④Cable types
Please select the cable according to the usage environment.
A: For inside of the panel / B: For indoor / C: For outdoor*2 / D: Outdoor reinforced Type / AW: For inside of the panel, the glasses-shaped Type(SG only) / BV: For indoor (SG only)*4 / DL: Outdoor LAP Type (QL, SG only) / EL: Outdoor Layer Twisted Type (SG only)*4
⑤Type of left side connector(only SG type specified)
C: DL6-CP
F: FC connector
S: SC connector
N: no connector
⑥Type of right side connector(only SG type specified)
C: DL6-CP
F: FC connector
S: SC connector
N: no connector
Optical fiber cable series name:AS,QH,QL,SG,M
②Connector installation:
2P: install on both ends of connector
1P: install on one end of connector (only SG)*1
None: Cable only (site works etc.)
③Length of cable:Please specify the required length(in 1 m increments)
④Cable types
Please select the cable according to the usage environment.
A: For inside of the panel / B: For indoor / C: For outdoor*2 / D: Outdoor reinforced Type / AW: For inside of the panel, the glasses-shaped Type(SG only) / BV: For indoor (SG only)*4 / DL: Outdoor LAP Type (QL, SG only) / EL: Outdoor Layer Twisted Type (SG only)*4
⑤Type of left side connector(only SG type specified)
C: DL6-CP
F: FC connector
S: SC connector
N: no connector
⑥Type of right side connector(only SG type specified)
C: DL6-CP
F: FC connector
S: SC connector
N: no connector
*1. After processing both ends of a connector,the loss measurement is carried out and one end of the connector is cut off.
*2. QL only, Type M is excluded.
*3. When using 2 core ×2, it is 2D. When using 2 core ×3, it is 3D. (SG is excluded)
*4. When selecting BV, DL or EL, please specify “2 cores”, “4 cores” or “6 cores” in the end of model names (QL is excluded)
*2. QL only, Type M is excluded.
*3. When using 2 core ×2, it is 2D. When using 2 core ×3, it is 3D. (SG is excluded)
*4. When selecting BV, DL or EL, please specify “2 cores”, “4 cores” or “6 cores” in the end of model names (QL is excluded)
List of optical fiber cables with connector (standard stock items)
* As the following cables may not be able to be manufactured in increments of 1 m depending on the order lot, please contact us separately.
Cable more than 4 cores (AS-D, QH-D, QL-DL, SG-BV, SG-DL), SG-EL, special optical fiber cables (AS-VCT, and so on).
Cable more than 4 cores (AS-D, QH-D, QL-DL, SG-BV, SG-DL), SG-EL, special optical fiber cables (AS-VCT, and so on).
| Model name | Use | Cable length |
|---|---|---|
| AS-2P-1M-A | For inside of a panel | 1m |
| AS-2P-2M-A | For inside of a panel | 2m |
| AS-2P-3M-A | For inside of a panel | 3m |
| AS-2P-5M-A | For inside of a panel | 5m |
| AS-2P-10M-A | For inside of a panel | 10m |
| AS-2P-15M-A | For inside of a panel | 15m |
| AS-2P-20M-A | For inside of a panel | 20m |
| AS-2P-1M-B | For indoor | 1m |
| AS-2P-2M-B | For indoor | 2m |
| AS-2P-3M-B | For indoor | 3m |
| AS-2P-5M-B | For indoor | 5m |
| AS-2P-10M-B | For indoor | 10m |
| AS-2P-15M-B | For indoor | 15m |
| AS-2P-20M-B | For indoor | 20m |
| AS-2P-25M-B | For indoor | 25m |
| AS-2P-30M-B | For indoor | 30m |
| AS-2P-40M-B | For indoor | 40m |
| AS-2P-50M-B | For indoor | 50m |
