Network cable / Network device：MELSECNET

Specification

Optical fiber cable SI Type

Use	In the panel		Indoor		Outdoor reinforced type
Cable type name	AS-A	QH-A	AS-B	QH-B	AS-D	QH-D	QL-DL
Type	H-PCF	Broadband HPCF	H-PCF	Broadband H-PCF	H-PCF	Broadband H-PCF	Broadband quartz glass
Core (μm)	200	200	200	200	200	200	185
Cladding (μm)	250	250	250	250	250	250	230
Transmission loss (dB/km)	6.0^*1	5.0^*1	6.0^*1	5.0^*1	6.0^*1	5.0^*1	5.5^*1
Connector for use	DL-72ME	DL-72ME	DL-72ME	DL-72ME	DL-72ME	DL-72ME	CA7003
Outside diameter (mm)	2.8	2.8	6.0	6.0	10.6	10.6	14.0
Outer jacket color	Yellow	Light blue	Orange	Orange	Black	Black	Black
Print display	-	-	MELSECNET OPTICAL FIBER CABLE + Model name
Outer jacket material	PVC	PVC	PVC	PVC	Outer: PE Inner: PVC	Outer: PE Inner: PVC	PE　LAP
Approximate net weight (kg/km)	7.0	7.0	30	30	85	85	170
Allowable tension (N)	196	196	196	196	735	735	1600
Allowable bending radius (mm)	30^*2	30^*2	100^*2	100^*2	100^*2	100^*2	140^*2
Service temperature range (℃)	-20 to 70	-20 to 70	-20 to 70	-20 to 70	-20 to 70	-20 to 70	-20 to 70
Maximum length of one unit (m)	1000	1000	1000	1000	1000	1000	1000

*1.This is a numerical value when the wavelength is 0.85μm. (The central emission wavelength of the measurement light source.)
*2.Both are the bending radius when the cables are fixed. (no load)

▲　Page TOP

Optical fiber cable GI Type

Use	In the panel		Indoor	Outdoor
Cable type name	SG-A	SG-AW	SG-BV	SG-DL	SG-EL
Type	Quartz glass GI Type	Quartz glass GI Type	Quartz glass GI Type	Quartz glass GI Type	Quartz glass GI Type
Core (μm)	50	50	50	50	50
Cladding (μm)	125	125	125	125	125
Transmission loss (dB/km)	3.0^*1	3.0^*1	3.0^*1	3.0^*1	3.0^*1
Connector for use	DL6-CP^*2	DL6-CP^*2	DL6-CP^*2	DL6-CP^*2	?^*4
Outside diameter (mm)	2.8	2.8×5.6	11.0^*3	12.0^*3	9.0
Outer jacket color	Black	Black	Black	Black	Black
Print display	?	?	MELSECNET OPTICAL FIBER CABLE+Model name
Outer jacket material	PVC	PVC	PVC	LAP sheath	LAP sheath
Approximate net weight (kg/km)	8.0	16	120^*3	120^*3	85
Allowable tension (N)	80	160	400 ^*3	490 ^*3	1180
Allowable bending radius (mm)	30*6	30*6	120*3,6	120*3,6	90*6
Service temperature range (℃)	-20 to 60	-20 to 60	-20 to 60	-20 to 60	-20 to 60
Maximum length of one unit (m)	1000	500	1000	1000^*5	2000

*1.This is a numerical value when the wavelength is 0.85μm.(The central emission wavelength of the measurement light source.)
*2.It is enable to install as a relay connection for FC and SC connector.
*3.This is a numerical value when using 2 cores, 4 cores.(When using more than 6 cores, please check the specification sheet.)
*4.It is unable to install connectors directly, to be attached by fusion splicing.
*5.If the cable length exceeds 1000 m, please consult us about price and delivery.
*6.Both are the bending radius when the cables are fixed. (no load)

Structure

MELSECNET series

　For inside the panel (SI cable)

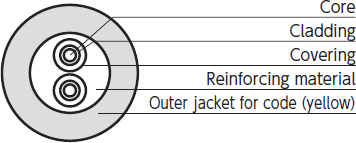

Type AS-A　H-PCF

●Suitable for short-range transmission
●Low transmission loss

Station to station distance	MELSECNET/H 25 Mbps	400m
Station to station distance	MELSECNET/10/H 10 Mbps	1000m
Number of cable cores		2 cores
Type		H-PCF
Connector for use		DL-72ME

Type QH-A Broadband H-PCF

●Suitable for broadband shortrangetransmission
●Low transmission loss

Station to station distance	MELSECNET/H 25 Mbps	1000m
Station to station distance	MELSECNET/10/H 10 Mbps	1000m
Number of cable cores		2 cores
Type		Broadband H-PCF
Connector for use		DL-72ME

▲　Page TOP

　For inside the panel (GI cable)

Type SG-A Type GI Quartz glass fiber

●As a relay cable for MELSEC,suitable for long-range transmission
●Low transmission loss

Station to station distance	MELSECNET/10/H 10 Mbps	2000m
Number of cable cores		Single core
Type		Type GI
Connector for use		DL6-CP

Type SG-AW Type GI Quartz glass fiber

●As a relay cable for MELSEC,suitable for long-range transmission
●Low transmission loss

Station to station distance	MELSECNET/10/H 10 Mbps	2000m
Number of cable cores		2 cores
Type		Type GI
Connector for use		DL6-CP

▲　Page TOP

　For indoor (SI cable)

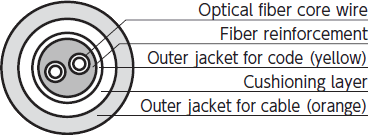

Type AS-B H-PCF

●Suitable for short and middle-range transmission
●Low transmission loss

Station to station distance	MELSECNET/H 25 Mbps	400m
Station to station distance	MELSECNET/10/H 10 Mbps	1000m
Number of cable cores		2 cores
Type		H-PCF
Connector for use		DL-72ME

Type QH-B Broadband H-PCF

●Suitable for short and middle-range broadband transmission
●Low transmission loss

Station to station distance	MELSECNET/H 25 Mbps	1000m
Station to station distance	MELSECNET/10/H 10 Mbps	1000m
Number of cable cores		2 cores
Type		Broadband H-PCF
Connector for use		DL-72ME

▲　Page TOP

　For indoor (GI cable)

Type SG-BV Type GI Quartz glass fiber

●Suitable for long-range transmission
●Low transmission loss

Station to station distance	MELSECNET/10/H 10 Mbps	2000m
Number of cable cores		2cores/4cores/6cores
Type		Type GI
Connector for use		DL6-CP

▲　Page TOP

　For outdoor (SI cable)

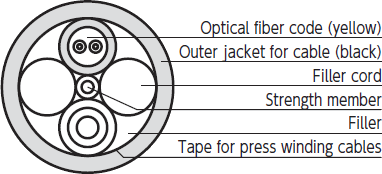

Type AS-D Reinforced H-PCF

●Suitable for medium-range broadband transmission
●Available for outdoor environment

Station to station distance	MELSECNET/H 25 Mbps	400m
Station to station distance	MELSECNET/10/H 10 Mbps	1000m
Number of cable cores		2cores/4cores/6cores/8cores
Type		H-PCF
Connector for use		DL-72ME

Type QH-D Reinforced Broadband H-PCF

●Suitable for medium-range broadband transmission
●Available for outdoor environment

Station to station distance	MELSECNET/H 25 Mbps	1000m
Station to station distance	MELSECNET/10/H 10 Mbps	1000m
Number of cable cores		2cores/4cores/6cores/8cores
Type		Broadband H-PCF
Connector for use		DL-72ME

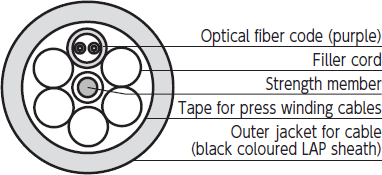

Type QL-DL Reinforced Broadband Quartz glass fiber

●Suitable for medium-range broadband transmission
●Available for outdoor environment
●Waterproof specification
* 4 cores, 6 cores and 8 cores are built-to-order products

Station to station distance	MELSECNET/H 25 Mbps	1000m
Station to station distance	MELSECNET/10/H 10 Mbps	1000m
Number of cable cores		2 cores*
Type		Broadband/Quartz glass
Connector for use		CA7003

▲　Page TOP

　For outdoor (GI cable)

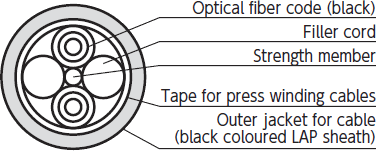

Type SG-DL Type GI Quartz glass fiber

●Suitable for long-range transmission
●Available for outdoor environment
●Waterproof specification

Station to station distance	MELSECNET/H 10 Mbps	2000m
Number of cable cores		2cores/4cores/6cores/8cores
Type		Type GI
Connector for use		DL6-CP

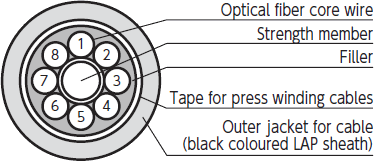

Type SG-EL Layer Twisted Type GI Quartz glass fiber(Eco-cable： Eco-friendly cable)

●Suitable for long-range transmission
●Available for outdoor environment
●Excellent cost performance
●Waterproof specification
●Not able to install connectors

Station to station distance	MELSECNET/H 10 Mbps	2000m
Number of cable cores		2cores/4cores/6cores/8cores
Type		Type GI
Connector for use		Fusion splicing

▲　Page TOP

Reinforced optical fiber cables

This optical fiber cable is 3 times stronger than our standard cables.

　PICOFLEC

PLJ n/n DLH2018*1,2

		2core	4core
Cable
	Diameter*3	3.5 mm (1 to 300 m),4.8 mm (301 to 600 m),6.0 mm (601 to 1000 m)	6.0 mm (1 to 300 m),7.0 mm (301 to 600 m)
	Weight*3	25 kg/km (1 to 300 m),30 kg/km (301 to 600 m),49 kg/km (601 to 1000 m)	49 kg/km (1 to 300 m),55 kg/km (301 to 600 m)
Core wire (optical fiber)		H-PCF
Connector		DL-72ME
Outer jacket		Flexible stainless steel metal pipe ＋ Flame retardant PVC coated
Allowable bending radius		40mm
Allowable tension		147N
Allowable lateral pressure		2450N/50mm
Service temperature range		-20 to 70℃
Transmission loss		6dB/km or less (λ： 0.85μm)

*1.n/n indicates the number of connectors. (1/1 for double-ended connector.)
*2.Please contact us separately for color, length of Flec Cables.
*3.The diameter and weigh vary with the cable length. For 4 cores, the maximum length of cable is 600m.

■Form for 2-core type

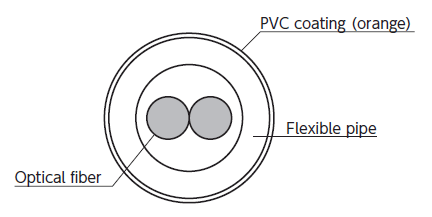

■Structure for 2-core type

▲　Page TOP

　PICOCABLE

PCJ n/n DLH2026*1,2

		2cores	6cores
Cable	Diameter	8.3mm	10.2mm
Cable	Weight	65kg/km	75kg/km
Core wire (optical fiber)		H-PCF
Connector		DL-72ME
Outer jacket		Stainless steel semi-seamless metal pipe ＋ PE coating
Allowable bending radius		80mm	100mm
Allowable tension	PICOFLEC	147N
Allowable tension	PICOCABLE	980N
Allowable lateral pressure	PICOFLEC	2450N/50mm
Allowable lateral pressure	PICOCABLE	7840N/50mm
Service temperature range		-20 to 70℃
Transmission loss		6dB/km or less (λ： 0.85μm)

*1.n/n indicates the number of connectors. (1/1 for double-ended connector.)
*2.Please contact us separately for color, length of Flec Cables.

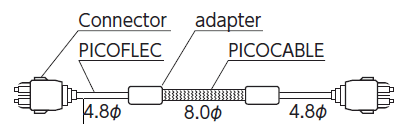

■Form for 2-core type

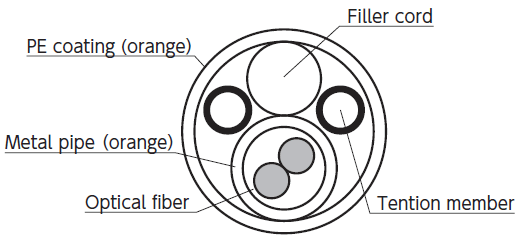

■Structure for 2-core type
