Network cable / Network device:CC-Link IE controller network

LineUP

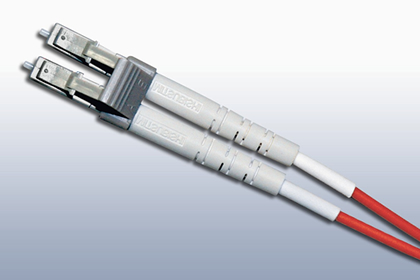

Optical fiber cable for CC-Link IE controller network
Model name: QG-AW (For inside of the panel)
Model name: QG-B (For indoor)
Model name: QG-BU (UL certified for indoor)
Model name: QG-VCT (For indoor movable part)
Model name: QG-C (For outdoor)
Model name: QG-DL (For outdoor reinforced type)


Since we have a rich lineup such as for inside for the panel, indoor use, outdoor use, and outdoor reinforcement type, it can correspond to various environments.

Features

■It is an optical fiber cable that passed the CC-Link Partner Association recommended product test. Please use the cables with confidence.

■Since we have a rich line-up such as inside of the panel use, indoor use, outdoor use, and outdoor reinforced type, it can correspond to various environments.

■For indoor and outdoor cables, by adopting a small diameter cables or collective structure cables, it can be used in a narrow installation environment of the factory at ease.

■The cables for indoor use and outdoor use can be towed directly because they have the same allowable tension as the outdoor reinforced type without tension member.

■The indoor UL certified cable (OG-BU) is UL Listed (UL OFNR) compliant cable with a high flame retardant and passed UL 1666 (Riser Cable Fire Test).

■Cable for indoor movable part can be used at the movable parts which need repetitive action.

■Cables for outdoor reinforced Type have waterproof property and can withstand flooding and temporary submersion.

■By attaching the supplied protective holder, it is possible to prevent breakage at the base of the connector and save space inside the panel.

■By connector boot with enhanced bending characteristic, disconnection at the base of the connector will be reduced.

■We manufacture in 1 m increments according to customer specified dimensions.

▲ Page TOP

Standard accessories


Protective holder
(included one holder per cable)


・Protection and prevention of breakage at the base of the
connector
・Maintain minimum bending radius
・Space saving inside the control panel (60 mm or less from the front of the sequencer to the end of the protection holder)


Applicable connector : LCFconnector

Caution:
The protective holder is exclusively for our LFC connector and cannot be sold the holder alone.
Moreover, it can not attach to other company's LCFconnector.

▲ Page TOP

Connection model list

Network name Connection model
CC-Link IE
controller network
Sequencer (PLC) iQ-R series RJ71GP21-SX
Q series QJ71GP21-SX
QJ71GP21S-SX
Interface board for PC Q81BD-J71GP21-SX
Q81BD-J71GP21S-SX
Q80BD-J71GP21-SX
Q80BD-J71GP21S-SX
ECP-CLECBD
ECP-CLECBDS
GOT Communication unit GT15-J71GP23-SX

▲ Page TOP

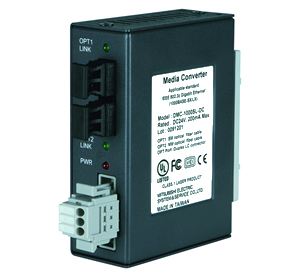

Optical media converter for CC-Link IE controller network

Model name: DMC-1000SL-DC

If station to station distance is 550 m or more, it is enable to increase the distance between stations by up to 15 km by inserting two of this product in between and connecting the single mode optical fiber cable.

Features

■Expansion of communication distance in CC-Link IE controller network
If station to station distance is 550 m or more, it is enable to increase the distance between stations by up to 15 km by inserting two of this product in between and connecting the single mode optical fiber cable.

■Low jitter transmission by 3R playback system
Cascade connection up to 4 stages becomes possible by performing low jitter signal relay with 3R (Re-generating 〈playback〉, Re-shaping 〈shaping〉, Re-timing 〈synchronous〉 playback system.

■Corresponding auto negotiation, link pass-through
This product transmits the received signal as it is without creating the autonegotiation signal.
Please use the setting of both counter devices at the autonegotiation setting.

▲ Page TOP

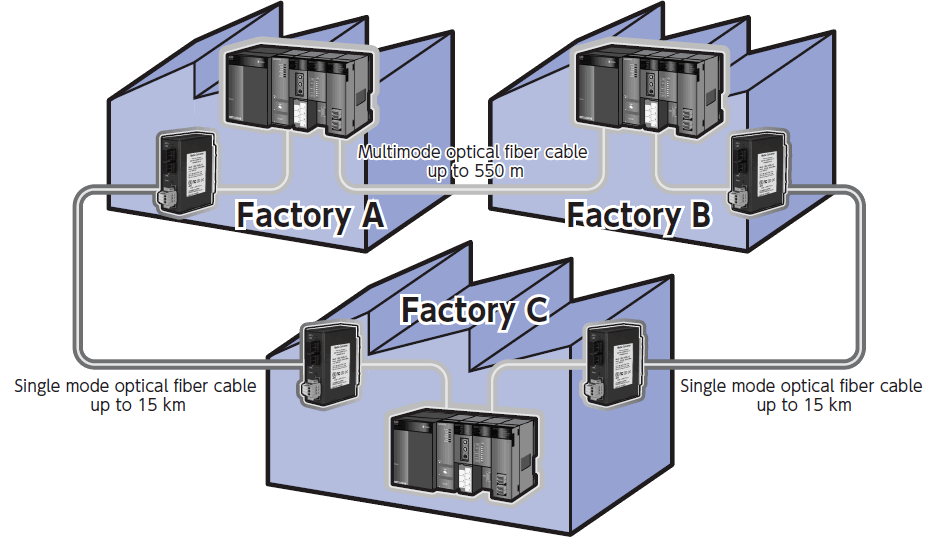

CC-Link IE controller network communication configuration example


When the station to station distance is 550 m or more (between factory A and C, between factory B and C),inserting 2 units of this product in between and connecting the single mode optical fiber cable make it possible to expand its distance up to 15 km.

▲ Page TOP

Applicable optical fiber cable

●When using this product, the following optical fiber cable with connector is required separately.
OPT 1 board (Single mode optical fiber cable side)
Items Specification
Applicable optical fiber cable Single mode optical fiber cable compatible with 1000BASE-LX
Applicable connector Dual LC connector (IEC 61754-20)
Connector polishing method PC, SPC, AdPC, UPC polishing


OPT 2 board (Multi-mode optical fiber cable side)
Items Specification
Applicable optical fiber cable Multi-mode optical fiber cable, compatible with 1000BASE-SX*1
Transmission band 500 MHz・km or more (λ = 850 nm)
Applicable connector Dual LC connector (IEC 61754 4)
Connector polishing method PC, SPC polishing*2
*1.We have various cables conforming to this standard.
*2.Please use PC polishing with reflection attenuation amount of 22 dB or more for optical connectors.
(Communication failure may occur when surface polishing or oblique polishing connectors are used.)

▲ Page TOP

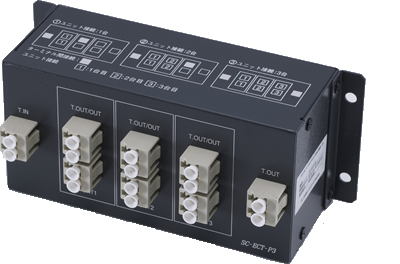

Connection terminal for CC-Link IE controller network

Model name: SC-ECT-P3

Star connection makes it easy to add and remove units,improving maintainability.

Features

■It is possible to add up to 3 units (concentrator) between stations.
(To add (concentrate) more than 4 units, please add the required number of connection terminals.)

■Additioning and removing units become easier and the maintainability improves.

■It is possible to start up in stages without replacing existing cables.
(For additional units, only the installation with one 4-core cable required.)

■Both screw mounting and DIN rail mounting are possible.

Note) Unit: CC-Link IE controller network compatible product

▲ Page TOP

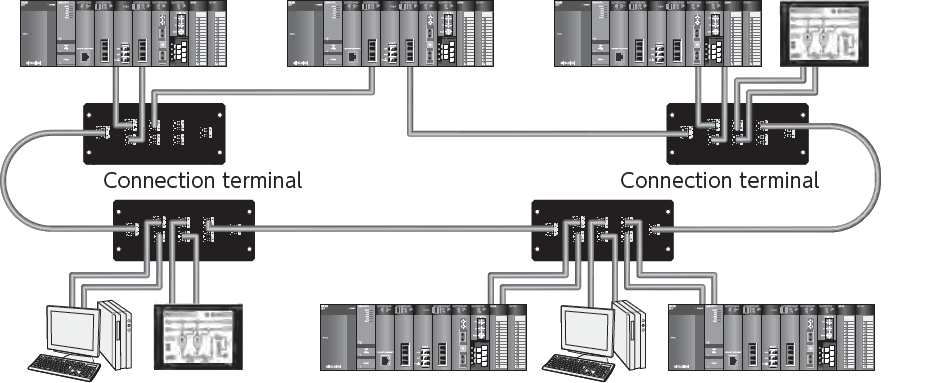

Communication Configuration Example


Be sure to connect at least one unit to the connection terminal. (See the figure below)


When using other than the above, please consult our branch offices.

▲ Page TOP

Option

Relay adapter (2 pcs)
Please use it for extension of optical fiber cable (relay connection) and temporary connection for future expansion part.
Item name Model name Specification
Relay adapter for LCF connector SPAD-LCF-G50 Double-core for Multi-mode, the connection loss 0.3 dB (vs. master fiber)
Relay adapter for SC connector PAD-SCF-G50 Double-core for Multi-mode, the connection loss 0.3 dB (vs. master fiber)
Relay adapter for FC connector SPAD-FC-G50 Single-core for Multi-mode, the connection loss 0.3 dB (vs. master fiber)


For LCF connector

For SC connector

For FC connector

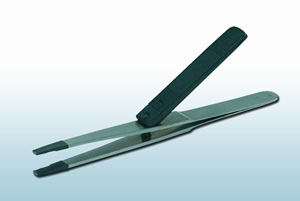

Connector detaching tool
Attaching and disconnecting a connector to a narrow space such as a rear slot of PC

Model name: SCT-SLM
Applicable connector LCF connector
LC connector
SC connector
MU connector
