Network cable / Network device：CC-Link IE controller network
For OverseasSpecification
Optical fiber cable for CC-Link IE controller network
| Items | QG-AW | QG-B | QG-BU | QG-VCT | QG-C | QG-DL | |||
|---|---|---|---|---|---|---|---|---|---|
| Usage environment/ use |
In the panel | Indoor | UL-certified products for indoor use | Indoor movable part | Outdoor | Reinforced type for outdoor use (water shielding) | |||
| Maximum cable length | Maximum 550 m | ||||||||
| Optical fiber types | Multi-mode optical fiber (GI) | ||||||||
| Transmission loss | 3.0 dB/km or less [λ = 850 nm]/1.0 dB/km or less [λ = 1300 nm] | ||||||||
| Transmission band | 500 MHz・km or more [λ = 850 nm]/500 MHz・km or more [λ =1300 nm] | ||||||||
| Standard | In accordance with IEC60793-2-10 A1a.1 |
In accordance with IEC60793-2-10 A1a.1 UL1651 (UL TYPE OFNR) | In accordance with IEC60793-2-10 A1a.1 | ||||||
| Material/ outside diameter |
Core | Quartz glass/50 ± 3 μm | |||||||
| Cladding | Quartz glass/125 ± 2 μm | ||||||||
| Inner jacket | PVC (Orange)/ φ2.0mm×2 |
PVC (Orange)/ φ2.0mm |
PVC (Orange)/ φ1.8mm |
PVC (Orange)/ φ2.0mm |
PVC (Orange)/φ2.0mm | ||||
| Outer jacket |
- | Flameretardant PE(Orange)/φ6.0 mm |
Flame-retardant PVC (Blue)/φ5.0 mm |
Elastic PVC(Orange)/φ6.0 mm | Flame-retardant PE(Black)/φ6.0 mm | LAP sheath (Black) 10.0 mm (2, 4 cores)/11.0 mm (6 cores)/ 12.0 mm (8 cores) |
|||
| Allowable tension | 60 N or less | 420N or less | 2cores | 4cores | 6 cores/ 8 cores |
||||
| 420N or less | 540N or less | 780N or less | |||||||
| Allowable bending radius | Not less than 15mm*1 | Not less than 60mm*1 | Not less than 60mm*2 |
Not less than 60mm*1 |
2 cores/ 4 cores |
6cores | 8cores | ||
| Not less than 100mm*1 |
Not less than 110mm*1 |
Not less than 120mm*1 |
|||||||
| Bending performance | - | 10 million times No disconnection*3 (Bending radius:60 mm point) |
- | ||||||
| Approximate weight | 8kg/km | 35kg/km | 20kg/km | 30kg/km | 35kg/km | 2 cores/ 4 cores |
6 cores | 8 cores | |
| 75 kg/km | 100kg/km | 120kg/km | |||||||
| Service temperature range | -20 to 60℃ | ||||||||
| Connector for use | LCF connector (Duplex LC connector)*4/SC connector/FC connector | ||||||||
The λ: Central emission wavelength of the measurement light source.
*1.It is the bending radius when the cable is fixed (no load).
*2.It is the bending radius under no load. Please note that the code portion can not be used in the movable part.
*3.It is a test result, not a guaranteed value. (The Performance varies depending on the usage environment of the customer.)
*4.When connecting to CC-Link IE Controller network products, the LCF connector is used.
When laying optical fiber cables compatible with CC-Link IE controller network, please refer to the installation manual issued by the CC-Link Partner Association.
*1.It is the bending radius when the cable is fixed (no load).
*2.It is the bending radius under no load. Please note that the code portion can not be used in the movable part.
*3.It is a test result, not a guaranteed value. (The Performance varies depending on the usage environment of the customer.)
*4.When connecting to CC-Link IE Controller network products, the LCF connector is used.
When laying optical fiber cables compatible with CC-Link IE controller network, please refer to the installation manual issued by the CC-Link Partner Association.
Optical media converter for CC-Link IE controller network
General specification
| Items | DMC-1000SL-DC |
|---|---|
| Usage environment | In the panel |
| Service temperature/humidity range | -10 to 55℃/95% RH or less (with no condensation) |
| Installation method | DIN rail or screw |
| Weight | 250 g (including DIN rail mounting foot, power terminal block) |
| External dimensions | W 31 mm × H 95 mm × D 90 mm (including DIN rail mounting foot, power terminal block) |
| Power supply specification | 20.4 to 26.4 V DC (terminal block input) |
| Safety standard | UL, CE, FCC Part15 classB, VCCI class B |
| Cascade connection | maximum 4 stages |
Detailed specification
| Items | DMC-1000SL-DC | ||
|---|---|---|---|
| OPT 1 port | OPT 2 port | ||
| Compliant standard | IEEE802.3z Gigabit Ethernet (1000BASE-LX) | IEEE802.3z Gigabit Ethernet (1000BASE-SX) | |
| Transmission method | Full duplex | ||
| Applicable cable | Optical fiber | Single mode optical fiber cable, compatible with 1000BASE-LX | Multi-mode optical fiber cable (bandwidth 500 MHz・km or more, λ = 850 nm), compatible with 1000BASE-SX |
| Connector | Dual LC connector (IEC 61754-20) | Dual LC connector (IEC 61754-20) | |
| Polishing method | PC, SPC, AdPC, UPC polishing | PC, SPC polishing | |
| Connection | Cross connection (one side A side connector is connected to the other B side connector) | ||
| Emission center wavelength | 1270 to 1360 nm | 830 to 860 nm | |
| Light allowable loss | 10dB | 7.5dB | |
| Estimated transmission distance | 15km or less*2 | 550m or less | |
*1.When connecting to the CC-Link IE controller network product, use the following optical fiber cable.
(We have various cables conforming to this standard.) Optical fiber cable with dual LC connector on both ends.
*2.It is a standard when connecting with the same model using a single mode optical fiber cable.
When connecting to a 1000BASE-LX compatible unit other than this product, it is 5 km.
(We have various cables conforming to this standard.) Optical fiber cable with dual LC connector on both ends.
*2.It is a standard when connecting with the same model using a single mode optical fiber cable.
When connecting to a 1000BASE-LX compatible unit other than this product, it is 5 km.
Connection terminal for CC-Link IE controller network
| Items | Specification | |
|---|---|---|
| Adaptable network | CC-Link IE controller network | |
| Model name | SC-ECT-P3 | |
| Adaptable optical fiber | Optical fiber cable compatible with 1000BASE-SX (MMF) | |
| standard | IEC60793-2-10 Types A1a.1 (50/125 μm Multi-mode) |
|
| Transmission loss (max) | 3.5 (dB/km) or less (λ ＝ 850 nm) | |
| Transmission band (min) | 500 (MHz・km) more than (λ ＝ 850 nm) | |
| Model name | QG series*1 | |
| Adaptable optical connector | Dual LC connector | |
| standard | IEC61754-20：Type LC connector | |
| Connection loss | 0.3 (dB) or less | |
| Polished surface | PC polishing | |
| Model name | DLCF-G50-D2*1 | |
| Connectable number | Up to 3 units**2 | |
| Usage environment | In the panel | |
| Service temperature/humidity range | 0 to 55℃/5 to 95% RH(with no condensation) | |
| Connection distance | Up to 150 m*3 | |
| Installation method | Screw or DIN rail*4 | |
| Weight | Approximately 300 g | |
| External dimensions | W 151 × D 64 × H 65 (mm) (For details, see the external dimension drawing) | |
*1.It is our company's model name.
*2.Be sure to connect at least one unit to the connection terminal.
*3.Cable length between "connection terminal ⇔ connection terminal" and "connection terminal ⇔ unit". (Please consult us if it is over 150 m.)
*4.DIN rail mounting foot required. DIN rail fixing part: SC-DIN-M (our model name )
*2.Be sure to connect at least one unit to the connection terminal.
*3.Cable length between "connection terminal ⇔ connection terminal" and "connection terminal ⇔ unit". (Please consult us if it is over 150 m.)
*4.DIN rail mounting foot required. DIN rail fixing part: SC-DIN-M (our model name )

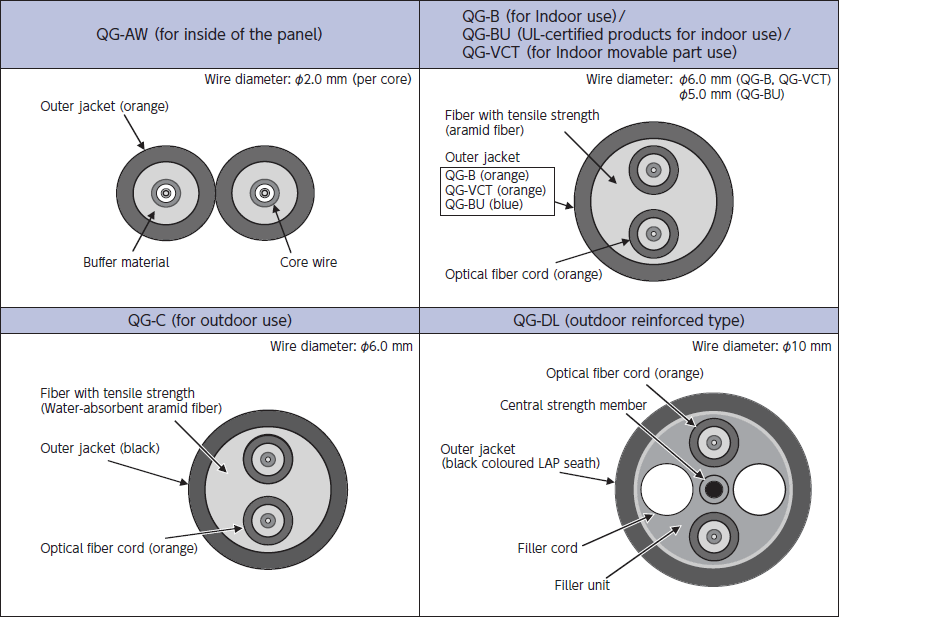

Structure
Optical fiber cable for CC-Link IE controller network
