Network cable / Network device：CC-Link IE controller network
For OverseasOutline drawing
Optical fiber cable for CC-Link IE controller network
Connector *Not to be sold separately
| Items | Contents | ||
|---|---|---|---|

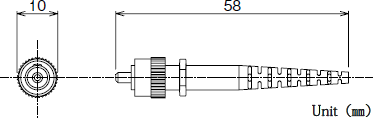

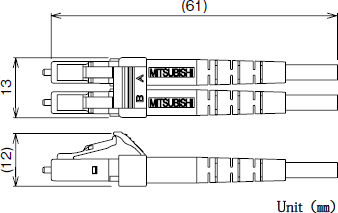

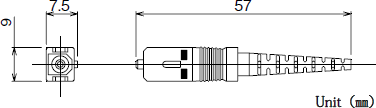

| Names | LCF connector | SC connector | FC connector |
| Model names | DLCF-G50-D2 | DSC-G50-D2 | DFC-G50-D2 |
| Connection loss | Less than 0.3 dB (to master fiber cable) | ||
| Polishing method | Physical contact polish | ||
| Standard | IEC61754-20: TypeLC In accordance with | IEC61754-4 | IEC61754-13 |
| External form |  |
 |
 |
| Use | For connecting CC-Link IE network products | For relay | |
Option

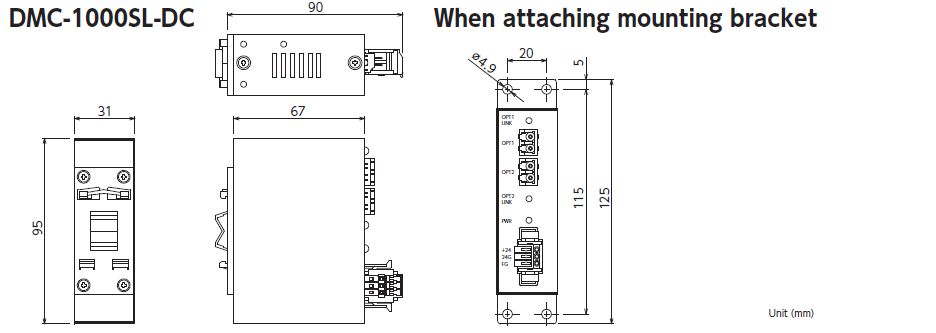

Optical media converter for CC-Link IE controller network
DMC-1000SL-DC

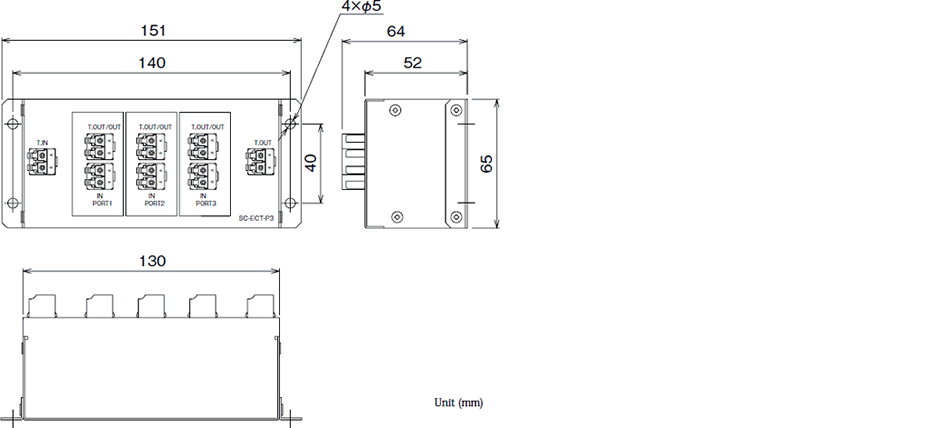

Connection terminal for CC-Link IE controller network
SC-ECT-P3
